16.5kw DEUTZ Air-Cooled Diesel Generator Sets / Gensets
- Specification Data
- Product Summary
- Running Condition
| Generator-set | Diesel Engine (DEUTZ) | Alternator (Stamford) | |||

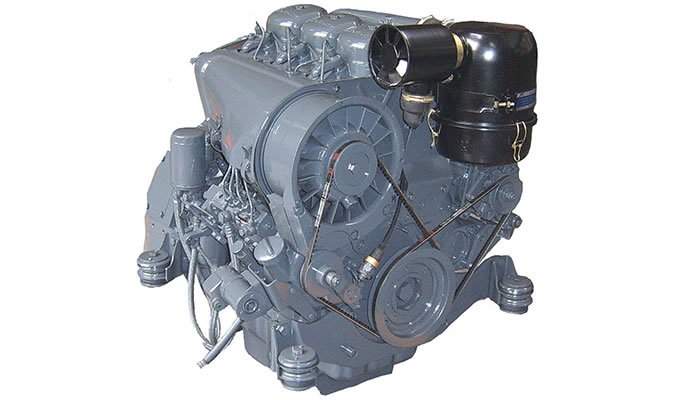

| Model | 1 5 GF | Model | F3L912D | Model | PI144D |
| Rated prime power | 1 5 KW | Prime power | 24KW | Rated power | 16KW |
| Standby power | 16.5 KW | Stand power | 26KW | Rated voltage | 400V/230V |
| Rated voltage | 400/230V | Rated speed | 1500rpm | Efficiency | 85.10% |
| Rated frequency | 50Hz | No. of Cylinder | 3 | Rated current | 29A |
| Rated currency | 29A | Bore/stroke | 100/120 | Power factor | 0.8 |
| Power factor | 0.8 | Cylinder arrangement | Line | Frequency | 50Hz |
| Steady state volt deviation | ≤±5% | Fuel consumption | 238g /kwh | Protection/ insulation | IP23/H |
| Steady state frequency | ≤2.5% | Start mode | 24V electrical | Exciting way | brushless self-exciting |
| Frequency drop scope | ≤8% | Governor | mechanical | Weight | 121kg |
| Phase | three phase | Aspiration type | Naturally aspirated | ||
| Base Frame | steel | Cooling way | air cooled | ||
| Dimension (mm) | 1350×770×1100 | Displacement | 2.282L | ||
| Weight | 580kg | Weight | 275kg | ||
| Type | Generator Set 15 GF |
| Place of Origin | China ( Deutz License Manufacturer) |
| Brand Name | Deutz Engine |
| Output Capacity | 18.8 KVA |
| Output Power | 15 kW |
| Frequency | 50Hz /60Hz |
| Cooling Type | Air Cooled |
| Alternator | Meccalte /Stamford/or customerized |
| Optional | silent type / o pen type /water-proof type |
| Certification | ISO |
According: GB/T2820; Altitude: 0～1000m;Ambient temperature: -35～40℃; Relative humidity: 95%
Standard scope of supply
Generator-set assembly (diesel engine, alternator, air filter, oil filter, fuel filter, silencer elbow, battery, Connection lines, circuit breaker, bracket)
Options
Base oil tank, independent oil tank, Assistant starting system when low temperature, Intelligent control system (including Weidian, Comap, Deep sea, etc).Different alternator brands available. One phase is optional.
Control system function:
start and stop function.
Panel: voltage, current, frequency, power factor, power, oil pressure, battery voltage, start times, gen-set running hours, temperature, etc.
Failure protection (alarm and stop) function: over speed/speed signal loss alarm, low oil pressure alarm, high cylinder temperature stop, low battery voltage alarm, stop failure alarm, emergency stop alarm, VAC/frequency over limit alarm, currency/power over load alarm, voltage unstable alarm, currency unstable alarm, belt broken alarm, etc.
