Deutz Diesel Engines (for Vehicles)

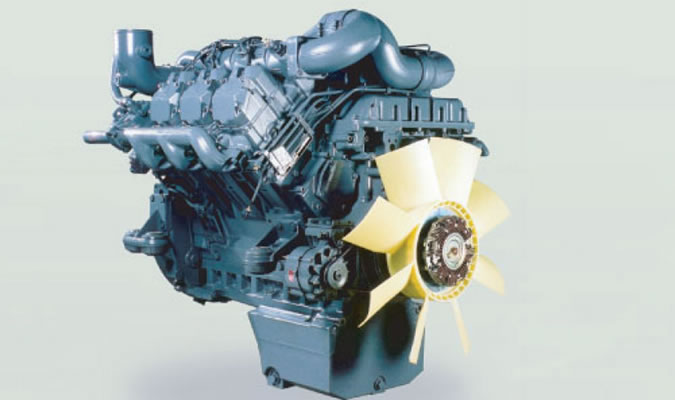

TCD2015V06 series diesel engine

This series of diesel engines for vehicles was introduced by Deutz AG and we manufacture the machines under their license.

The diesel motors feature incredible torque and power output with low emission levels that meet Euro I standards and it has the potential to meet Euro IV standards with minor adjustments.

The EUP technology used in the design of the diesel motors leads to longer service life and higher reliability. Diesel powered vehicles using these engines have an average working life of 1 million kilometers.

Maintenance is greatly simplified thanks to the one-cylinder-one head structure that is easily dismounted and repaired if necessary. The patented technology of the engine features a crankshaft and crankcase with minimal noise output.

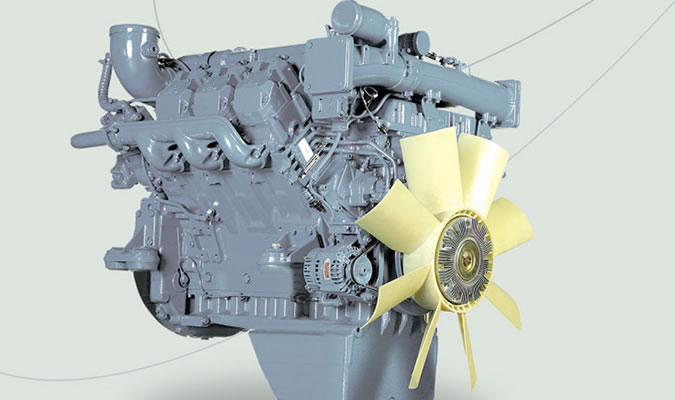

BF6M1015C series diesel engines

Advanced Deutz technology, V-type structure with 30% to 45% torque reserve, lower speed and higher torque give the diesel machinery great acceleration and power.

Longer service life, higher reliability and with an average of 1 million kilometers of use.

Model list for vehicle application
BF6M1015C
Model Intake Mode Bore/ Stroke mm Displacement L Rated Power kw Rated Speed r/min MaxTorque /Speed N.m/(r/min) Min Fuel Consumption (g/kw.h) Idle Speed (rpm) Weight (kg)
BF6M1015C Turbocharged Inter-cooled 1 32 ×1 45 11.906 214 2 100 1265 /13 195 600 850
BF6M1015C Turbocharged Inter-cooled 132 ×1 45 11.906 240 2 100 1420 /1300 195 600 850
BF6M1015C Turbocharged Inter-cooled 132 ×1 45 11.906 3 2 100 1779 /13 195 600 850
TCD2015V06
Model Intake Mode Bore/ Stroke mm Displacement L Rated Power kw Rated Speed r/min MaxTorque /Speed N.m/(r/min) Min Fuel Consumption (g/kw.h) Idle Speed (rpm) Weight (kg)
TCD2015V06 Turbocharged Inter-cooled 132 ×1 45 11.906 250 2100 1558 /1300 195 600 975
TCD2015V06 Turbocharged Inter-cooled 132 ×1 45 11.906 279 2100 1738 /1300 195 600 975
TCD2015V06 Turbocharged Inter-cooled 132 ×1 45 11.906 3 2100 1900 /13 195 600 975
