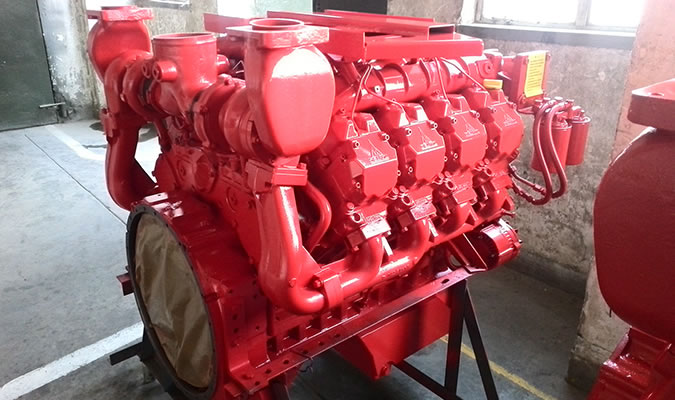

Our fire pump engine is a diesel powered motor that features a compact, lightweight structure that is a high power and low noise machine.
The fire pump engine is connected to the sprinkler system of a building and our pump engines are highly reliable and are easy to maintain.
High low-temperature starting performance
Directly start at -17 ℃ without assistant starting devices
Directly start at -32 ℃ with the assistance of preheater.
The power pack for fire pump is designed and produced according to the U.S. NFPA-20 standard.

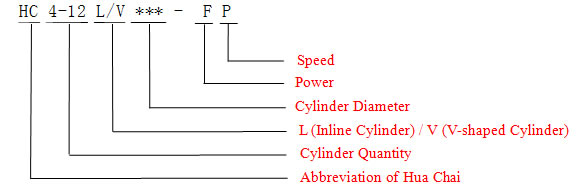

Description of Engine Model Number Graphic of Water-Cooled EngineNo. | Engine Model | Prime Power/ Speed kW/r/min |
Standby Power/ Speed kW/r/min |
No. | Engine Model | Prime Power/ Speed kW/r/min |
Standby Power/ Speed kW/r/min |
1 | 54/1500 | 60/1500 | 24 | 332 /1500 | 365 /1500 | ||
2 | 71/1500 | 75/1500 | 25 | 228 /1800 | 250 /1800 | ||
3 | 63/1800 | 70/1800 | 26 | 244 /1800 | 271 /1800 | ||
4 | 79/1800 | 88/1800 | 27 | 279 /1800 | 310 /1800 | ||
5 | 77/1500 | 85/1500 | 28 | 306 /1800 | 341 /1800 | ||
6 | 97/1500 | 102/1500 | 29 | 340 /1800 | 380 /1800 | ||
7 | 117/1500 | 129/1500 | 30 | 346 /1500 | 380 /1500 | ||
8 | 85/1800 | 89/1800 | 31 | 388 /1500 | 418 /1500 | ||
9 | 105/1800 | 111/1800 | 32 | 403/1500 | 448 /1500 | ||
10 | 124/1800 | 136/1800 | 33 | 413/1500 | 459 /1500 | ||
11 | 146/1500 | 153/1500 | 34 | 445/1500 | 490 /1500 | ||
12 | 166/1500 | 183/1500 | 35 | 480/1500 | 530 /1500 | ||
13 | 183/1500 | 201/1500 | 36 | 509/1500 | 560 /1500 | ||
14 | 155/1800 | 163/1800 | 37 | 372/1800 | 413 /1800 | ||
15 | 186/1800 | 204/1800 | 38 | 408/1800 | 454 /1800 | ||
16 | 204/1800 | 224/1800 | 39 | 426/1800 | 473 /1800 | ||
17 | 177 /1500 | 195 /1500 | 40 | 466/1800 | 517 /1800 | ||
18 | 190 /1500 | 210 /1500 | 41 | 509/1800 | 560 /1800 | ||
19 | 208 /1500 | 231 /1500 | 42 | 527/1800 | 580 /1800 | ||
20 | 228 /1500 | 250 /1500 | 43 | 600 /1500 | 660 /1500 | ||
21 | 259 /1500 | 285 /1500 | 44 | 660 /1500 | 740 /1500 | ||
22 | 285 /1500 | 314 /1500 | 45 | 665 /1800 | 730 /1800 | ||
23 | 314 /1500 | 345 /1500 | 46 | 690 /1800 | 760 /1800 |
